Brakes & Brake Systems Explained: Pads, Rotors, Big Brake Kits & More

Horsepower is what everyone brags about, but braking is what keeps you alive — and on a track, what actually makes you fast. The ability to brake later and more consistently into a corner is one of the biggest differentiators between a quick driver and a slow one. Yet brakes are one of the most misunderstood systems on a car.

This guide explains how your braking system works, what each component does, and how to upgrade intelligently instead of just throwing a flashy big brake kit at the problem.

How Braking Actually Works

Your brakes don't make your car stop. They convert your car's kinetic energy into heat through friction, and that heat has to go somewhere. When you press the pedal:

1. The pedal pushes a piston in the master cylinder, pressurizing the brake fluid.

2. That hydraulic pressure travels through the brake lines to the calipers at each wheel.

3. The caliper pistons squeeze the brake pads against the spinning rotor (disc).

4. Friction between pad and rotor slows the wheel and generates heat.

Understanding that braking is fundamentally a heat management problem is the key to every upgrade decision that follows.

Brake Fade: The Enemy

When you ask brakes to do too much for too long — repeated hard stops, a downhill canyon run, or lapping a track — the system overheats and you get brake fade: the pedal goes soft and stopping power drops dramatically. There are two main types:

• Pad fade: The pad compound exceeds its temperature range and stops gripping effectively.

• Fluid fade (boiling): The brake fluid overheats and boils, introducing compressible air bubbles into the lines. The result is a pedal that sinks to the floor.

Almost every brake upgrade exists to push back the point at which fade occurs.

Brake Pads: The Most Important Upgrade

If you upgrade one thing, upgrade your pads. The pad compound determines bite, temperature range, dust, and noise.

A critical point most people miss: pads and tires are a team. A high-torque race pad will easily overwhelm low-grip all-season tires, triggering ABS and unsettling the car. If you're still on stock or all-season tires, start with a moderate compound. Aggressive race pads also work poorly when cold, so they're a bad choice for street use where you need that first stop from a cold parking lot to be strong.

Brake Rotors

Rotors are the spinning discs the pads clamp onto. Their job is to provide a friction surface and to absorb and dissipate heat.

• Blank / smooth: The OEM standard. Quiet, smooth, and perfectly adequate for street driving.

• Slotted: Slots cut into the face help sweep away gas, dust, and debris, keeping the pad biting cleanly. A common track-day choice.

• Drilled: Holes reduce weight and help cooling, but can be prone to cracking under hard, sustained track use. Often best treated as a street/show option.

• Two-piece / floating: An aluminum center "hat" bolted to an iron friction ring. This reduces weight and allows the ring to expand with heat without warping. The choice for serious track and race builds.

Vented vs. solid: Most performance rotors are "vented" — two friction surfaces separated by internal vanes that pump air through the rotor to cool it. Directional vane designs cool even better and are side-specific (left and right).

Brake Fluid

Brake fluid is the unsung hero. Because braking generates heat and fluid fade is caused by boiling, fresh, high-quality fluid is one of the cheapest and most effective upgrades — especially before any track day.

Fluid is rated by its dry and wet boiling points (DOT 3, DOT 4, DOT 5.1). Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time, which steadily lowers its boiling point. A high-temperature DOT 4 racing fluid and an annual flush will prevent the soft, sinking pedal that catches so many drivers off guard. Note: a full brake fluid flush at the start of every track season is considered an absolute must by experienced drivers.

Stainless Steel Brake Lines

Factory brake lines are usually rubber, which expands slightly under pressure. That expansion is wasted motion you feel as a slightly mushy pedal. Braided stainless steel lines have a Teflon core wrapped in stainless braid that resists expansion, giving a firmer, more responsive pedal and better feel. It's a relatively inexpensive upgrade that's genuinely noticeable, even on a daily driver.

Big Brake Kits (BBK): Do You Actually Need One?

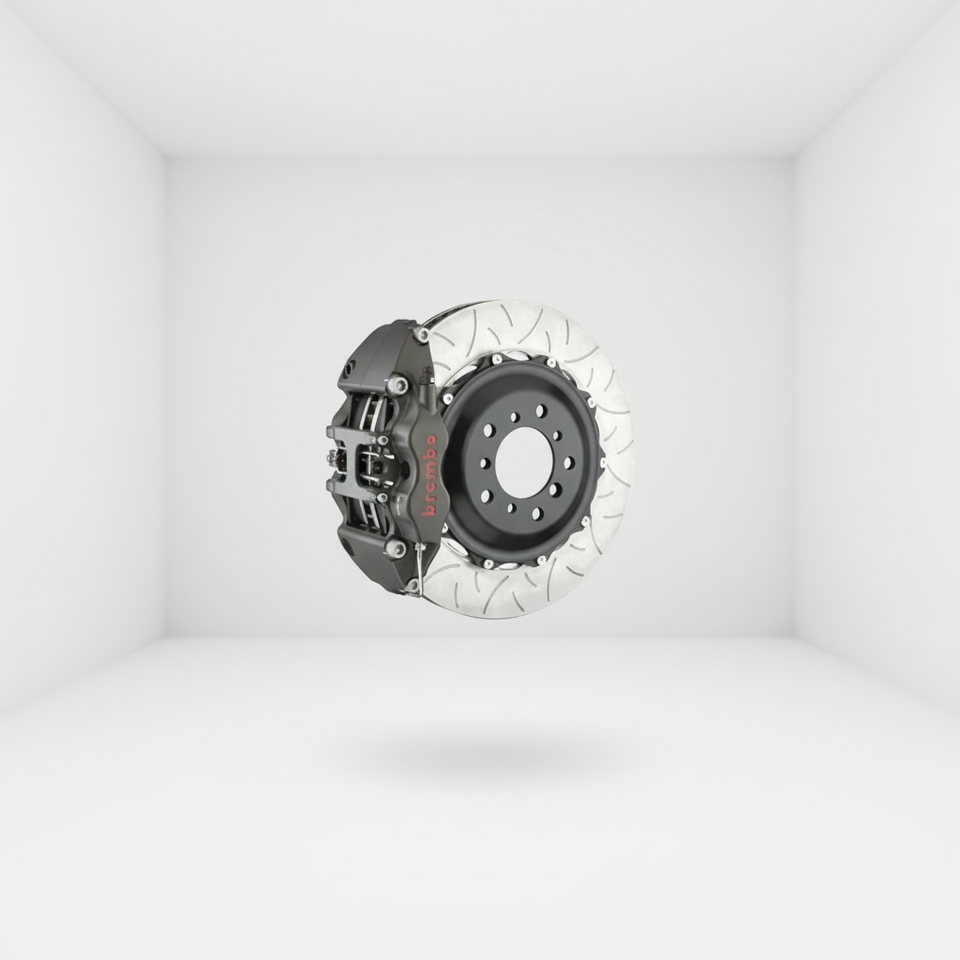

A big brake kit replaces your calipers and rotors with larger units — bigger rotors with more thermal mass and multi-piston calipers that clamp more evenly.

Here's the honest truth: most street drivers don't need a big brake kit. For daily driving, braking is about safety and a single hard stop, not sustained heat. A pad upgrade, fresh fluid, and stainless lines will transform a street car's brakes for a fraction of the cost.

A big brake kit genuinely earns its keep when:

• You're doing repeated track sessions and experiencing fade even after pad and fluid upgrades.

• You've significantly increased your car's power and weight.

• You've gone to much larger, grippier tires that let you brake harder.

When you do go BBK, remember the system has to be balanced — bigger fronts without considering the rears or master cylinder can upset brake bias and the car's behavior under braking.

A Smart Upgrade Path

For most enthusiasts, the right order is:

1. Fresh high-temp brake fluid — cheapest insurance against fade.

2. Performance pads matched to your tires and use.

3. Stainless steel brake lines for pedal feel.

4. Upgraded rotors (slotted) if you're tracking.

5. Big brake kit — only after the above, and only if you still need more.

Final Thoughts

Great brakes aren't about the biggest, shiniest caliper — they're about matching the system to how you drive and managing heat. Build from fluid and pads up, and your car will stop harder, feel better, and stay consistent lap after lap.
