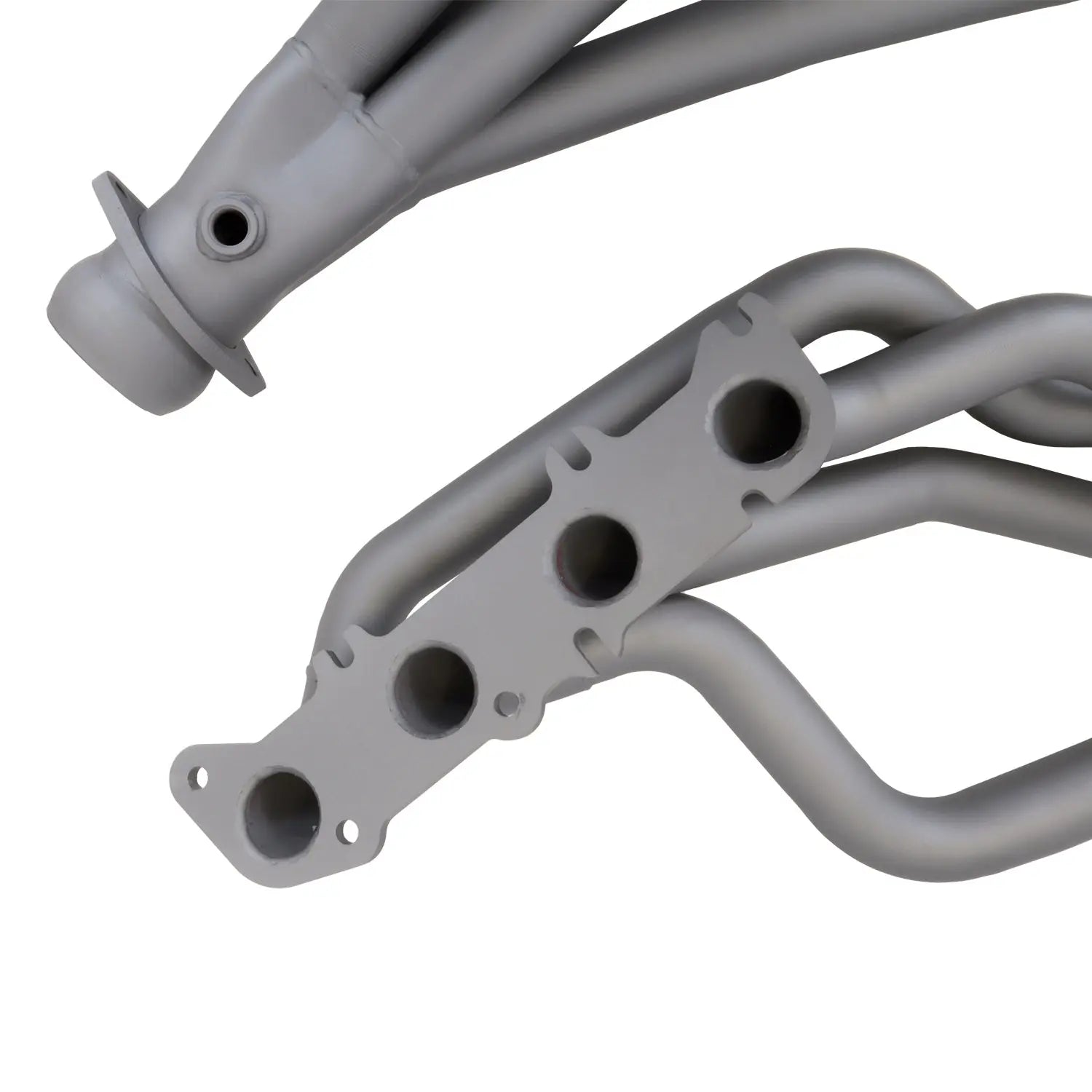

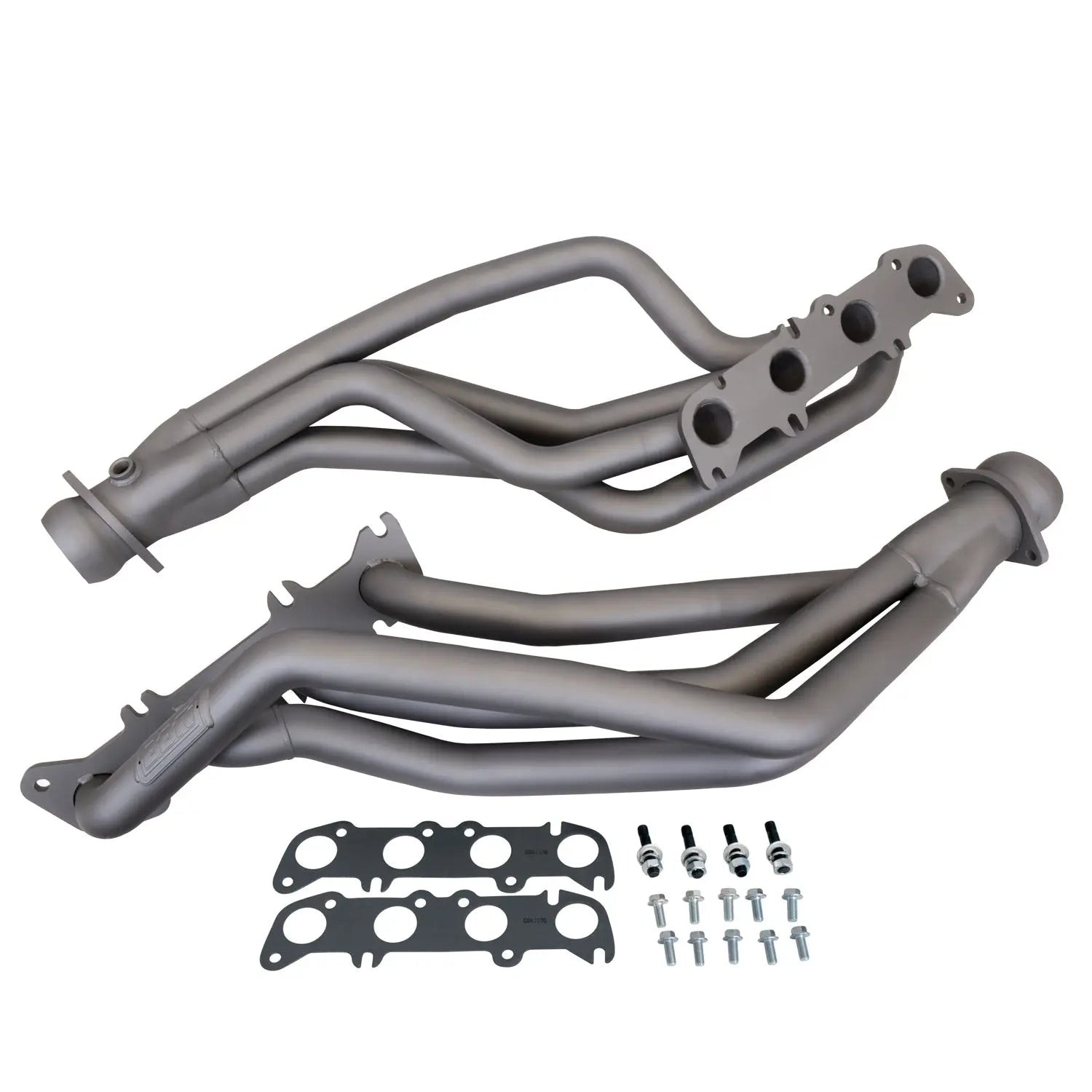

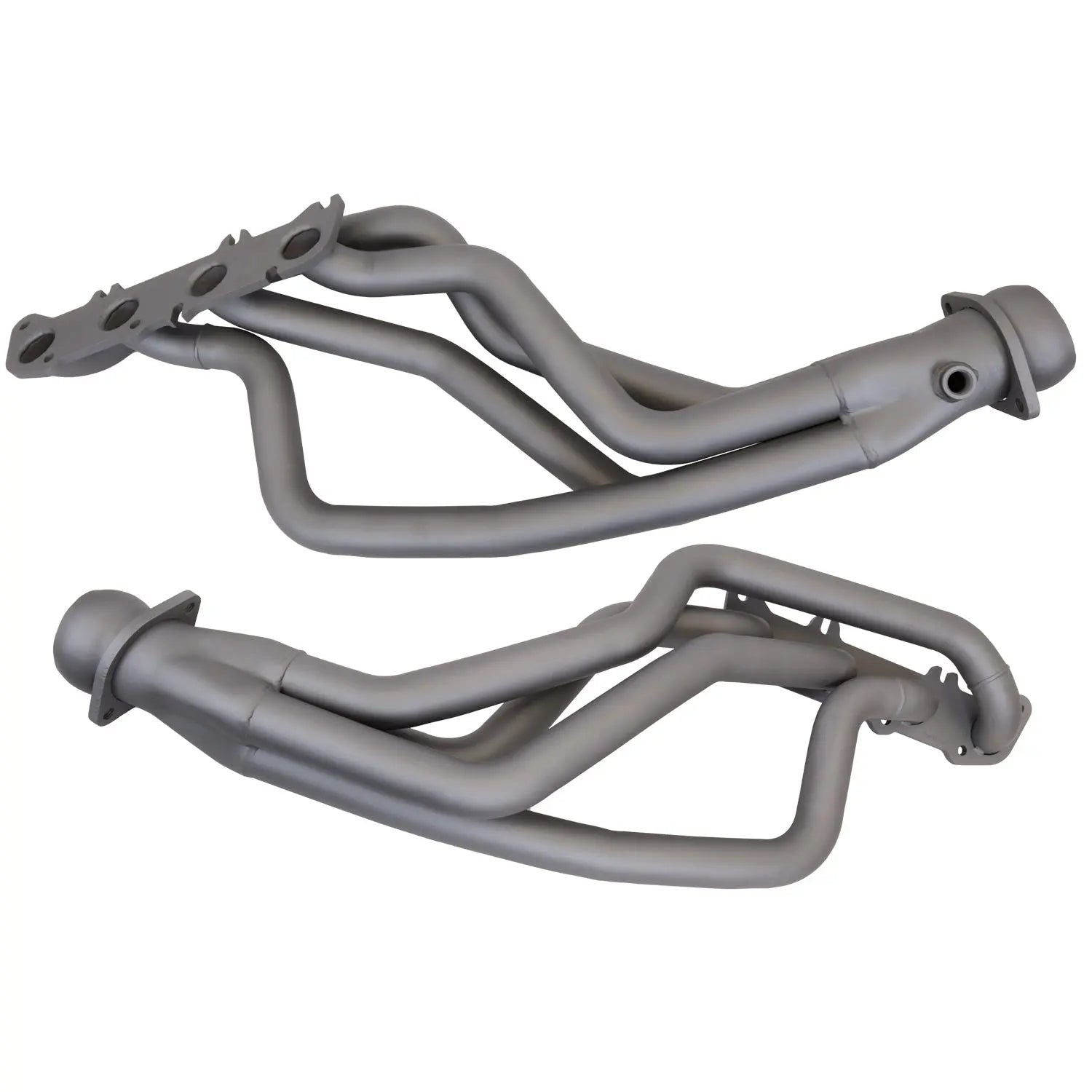

Ford Mustang Coyote Swap 1-3/4 Long Tube Exhaust Headers Titanium Ceramic 79-04

Ford Mustang Coyote Swap 1-3/4 Long Tube Exhaust Headers Titanium Ceramic 79-04

PART #1634

FEATURES:

• Put a Coyote 5.0 in Your Earlier Model Mustang
• 20+ Horsepower Increase Over Factory Header
• Large 1-3/4" Primaries
• 3/8" Thick Flanges and 16 Gauge Steel Tubing
• For Use With BBK Short Mid Pipes
• Gaskets and Hardware Included
• Fits with Manual Transmission ONLY and "Most" Aftermarket K-Members
• Will NOT work on truck swaps

• Titanium Ceramic Finish



VEHICLE FITMENT:

• 1979-2004 Mustang Chassis with 2011+ 5.0L Coyote Engine Swap
• Will NOT Fit Automatics - Designed to work on Manual Transmissions ONLY
• Click Here To See Muscle Mustangs & Fast Fords Installation Article

Designed using a Maximum Motorsports K-member and manual transmission. May not fit other configurations without modification. 3" Matching Short X-pipes with with converters are also available to connect up to the Cat back Exhaust (Minor Exhaust Fabrication Required) Because they are 3-inch, you will need a new 3" cat-back exhaust system or modify the stock cat-back to fit. We highly recommend a new 3" system. The 87-93 Mustang GT 3" cat-back Flowmaster Part #17396 was used with required modifications.

Note: These BBK Long Tube Headers require the use of Front O2 wire harness extensions - these are not included and are recommended for installation. Please check the GEN Coyote engine that you have and order the correct harness:

- GEN1 Coyote 11-14 requires Part #1112
- GEN2 Coyote 15-17 requires Part #1119
- GEN3 Coyote 18-23 requires Part #1121

Put a Coyote 5.0 in Your Mustang!
These BBK Coyote swap headers are constructed from mandrel bent high flow 1-3/4" tubing with 3" collectors making them perfect for both naturally aspirated and supercharged builds. These full length headers will help give your Coyote powered Mustang a throaty exhaust note. The titanium ceramic coated finish is very durable and helps hold in heat, improving flow and reducing under hood temperatures.

Quality Construction BBK Coyote swap full length Mustang headers are made from 1-3/4" CNC-machined mandrel bent tubing with 3/8" thick die-stamped flanges. The full length primary tube design creates unrestricted and balanced airflow for ultimate horsepower gains. These headers are pressure tested to ensure leak free performance.

Installation These Headers were designed using a Maximum Motorsports K member and manual transmission. May not clear with other combinations. For use with BBK Performance short mid pipe # 1786

Note:
Kit Includes ALL required gaskets and hardware. Please note some OE Header Studs MUST be re-used on this installation.
Header Bolts included in the kit are:
10pcs - M10x1.5 x 25mm (Early 2011 Coyote Gen 1) &
10pcs - M10x1.25 x 25mm (Later Model Gen II & Gen III Engines)
You MUST Check for the correct thread pitch before installation. Failure to check thread pitch will result in a damaged cylinder head.

Emissions Information

This part is NOT C.A.R.B Approved and cannot be installed for use on any emission controlled vehicle in California.
It cannot be sold or shipped to any California resident or addressee.
