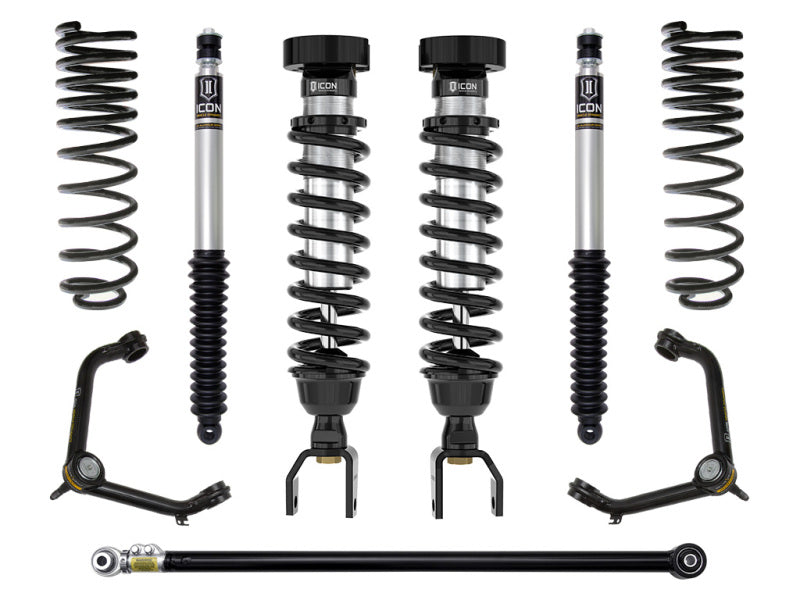

ICON 19-23 Ram 1500 2-3in Stage 5 Suspension System w/ Tubular Uca

ICON Vehicle Dynamics 2019-2026 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. An adjustable rear track bar ensures proper rear axle alignment and removes bushing deflection caused by soft rubber, stock track bar bushings. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• On-vehicle adjustable rear track bar for precise track alignment using ICON’s Double Adjuster
• Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable coilovers yield 2-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
