ICON 19-23 Gm 1500 1.5-3.5in Stage 2 Suspension System w/ Billet Uca

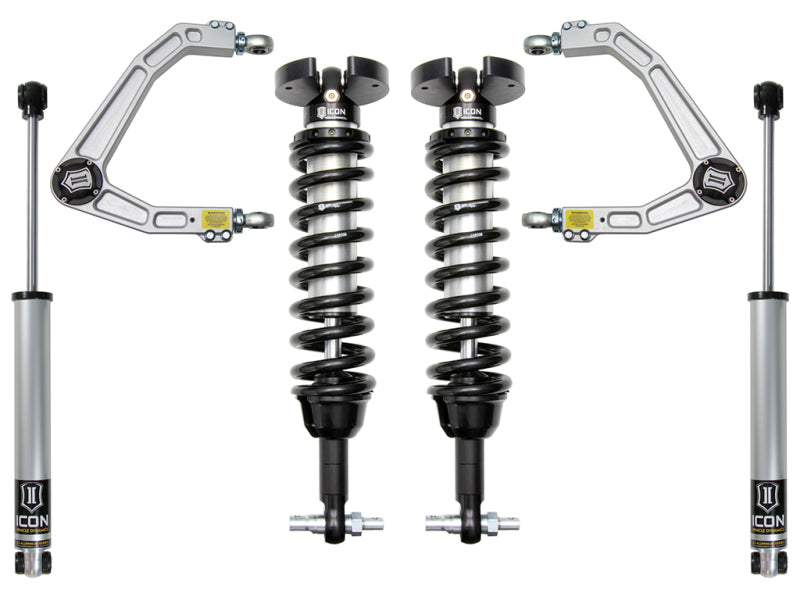

ICON Vehicle Dynamics 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 system includes vehicle-specific tuned 2.5Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-developed coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics Chevrolet 2019-2026 Silverado 1500/GMC Sierra 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
• ICON fabricated components covered by lifetime guarantee against breakage or manufacturer defect
• 2.0 Aluminum Series shocks feature corrosion resistant anodized shock body with 5/8" shaft
• 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8" shaft
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Increased lift height allows for fitment of larger and more aggressive tires
• Direct bolt-in design makes for a simple and straightforward installation
• FK Rod End bearings provide extended longevity and minimal deflection
• Adjustable coilovers provide 1.5-3.5” of front lift height
• Up to 35% increase in front wheel travel over stock
• Shocks are fully rebuildable and revalvable
• Fits 2WD/4WD applications

This Part Fits:
