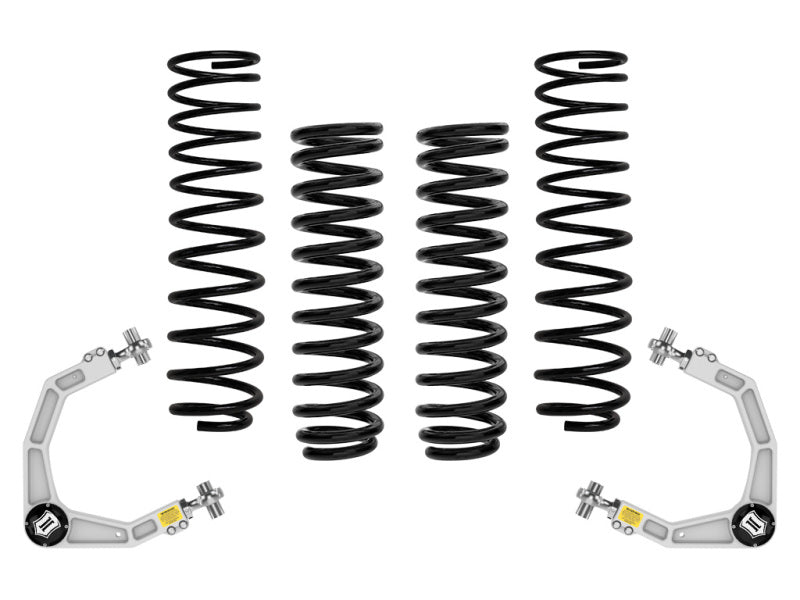

ICON 21-24 Ford F150 Raptor 4WD 2-2.25in Stage 2 Suspension System Overland Billet Uca

This Stage 2 system is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.

• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel

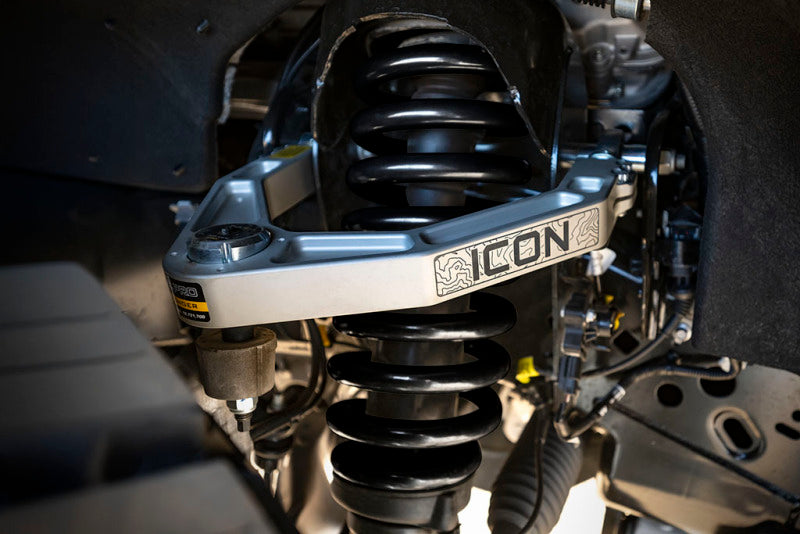

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

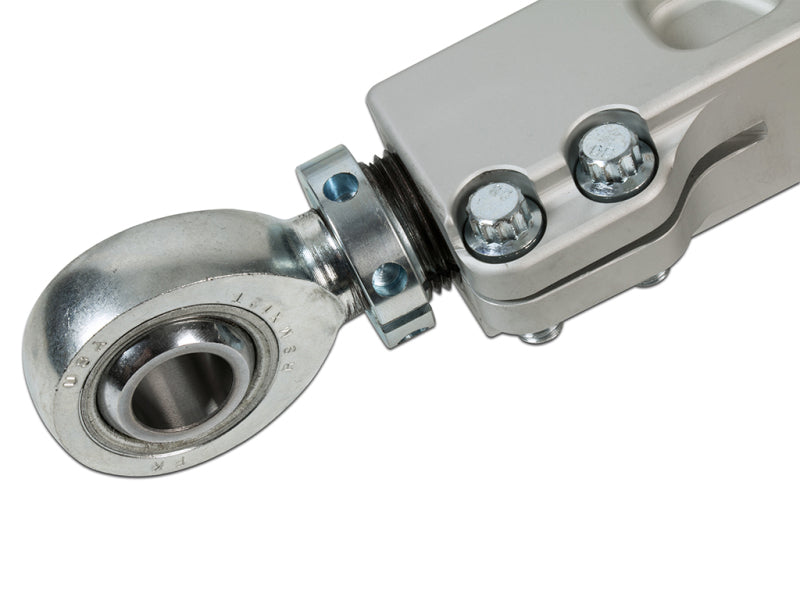

• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
• Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Significantly improves on- and off-road ride quality and performance over stock
• Tapered wire rear coil design achieves maximum travel and efficiency
• Compatible with all versions of available OE shock absorbers
• Dual stage powder coating for maximum corrosion resistance
• Bolt-on installation with no cutting required
• Lifetime guarantee against sagging/breakage
• Maintains electronic shock functionality
• Linear rate front coil springs
