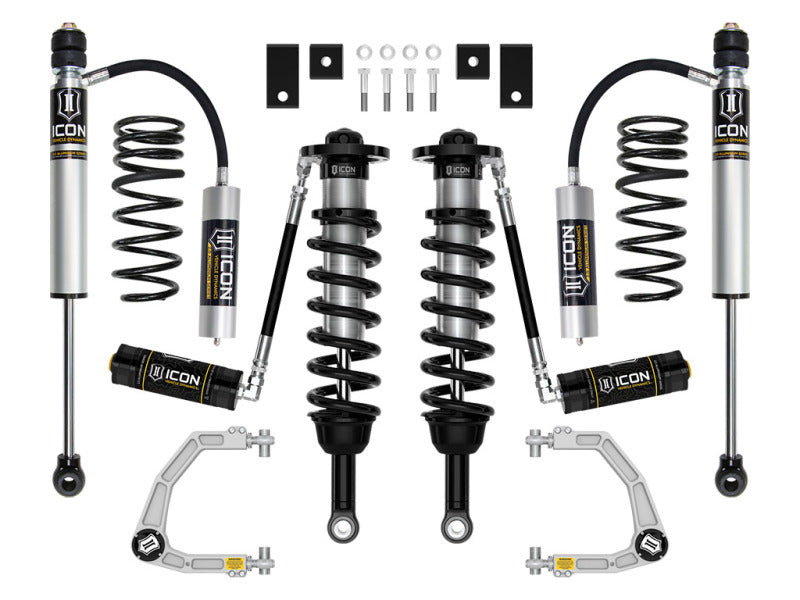

ICON 23-24 Sequoia 3-4.5in Stage 6 Suspension System Billet

This Stage 6 system features the 2023-2026 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2023-2026 Toyota Sequoia

This Part Fits:
